Preprocessing

Removal of SNP-enriched Probes

10131 sites were removed because they overlap with SNPs. The list of removed probes is available in a dedicated table accompanying this report.

Greedycut

The Greedycut algorithm iteratively removes from the dataset probes and samples of highest impurity. These correspond to the rows and columns in the detection p-value table that contain the largest fraction of unreliable measurements. This section summarizes the results of applying Greedycut on the analyzed dataset.

Unreliable Measurements

We considered every β value to be unreliable when its corresponding detection p-value is not below the threshold T:

pT = 0.05

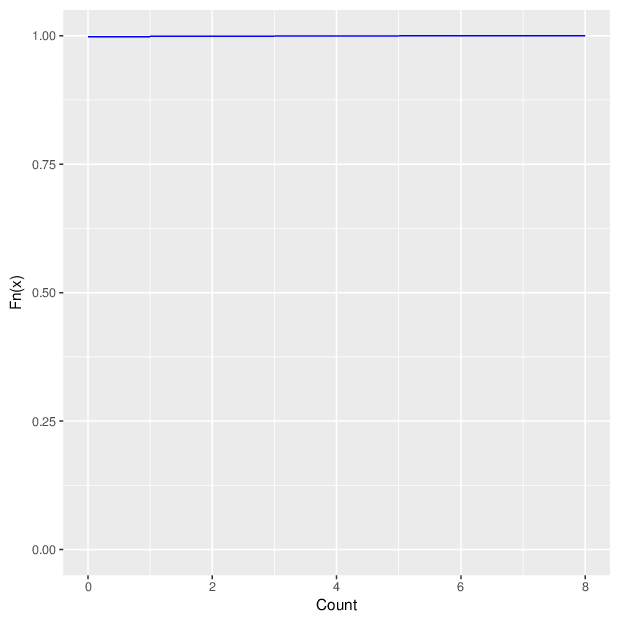

The figure below summarizes the observed number of unreliable measurements per probe and per sample.

Number of values per

Figure 1

Open PDF Figure 1

Cumulative distribution function of number of unreliable values per probe/sample.

Filtered Probes and Samples

RnBeads executed Greedycut using the threshold given above and applied all its steps. Briefly, Greedycut is an iterative algorithm that filters out the probe or sample with the highest fraction of unreliable measurements one at a time. Note that every iteration of the algorithm produces a matrix of retained measurements and a set of removed ones.

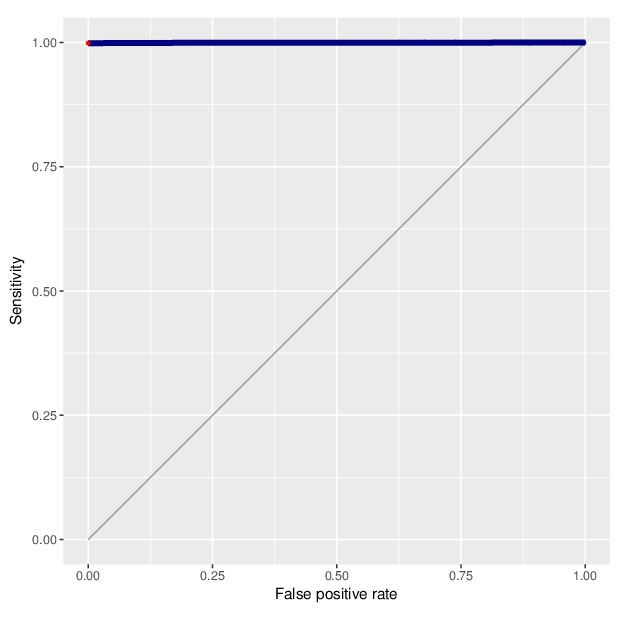

We calculated false positive rate (α) and sensitivity (s) when the retained measurements are considered as prediction for the reliable ones. Among all matrices produced by Greedycut, we selected the one that maximizes the value of the expression s + 1 - α, thereby giving equal weights to the sensitivity and specificity. Presented geometrically on a ROC curve, this is the point that is furthest from the diagonal. The results of the Greedycut procedure and the selected iteration are presented in the figure below.

Metric
Iterations to show

Figure 2

Open PDF Figure 2

Change of table dimensions / metric related to accuracy as Greedycut progressively removes probes and samples. Accuracy is calculated by treating the retained entries as predictive of reliable measurements. The red circle, if present, marks the last iteration that was executed.

Based on the criteria described above, 757 probes and 0 samples were filtered out. Links to the lists of removed items are given below.

Type Removed Table
Probes 757 removed_sites_greedycut.csv
Samples 0

Filtering Summary I

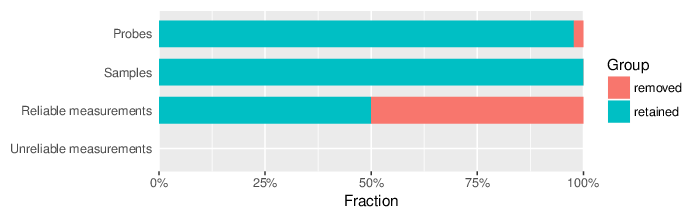

As a final outcome of the filtering procedures, 10888 probes and 0 samples were removed (12 samples and 474689 probes were retained). These statistics are presented in a dedicated table that accompanies this report and visualized in the figure below.

Figure 3

Open PDF Figure 3

Fractions of removed values in the dataset after applying filtering procedures.

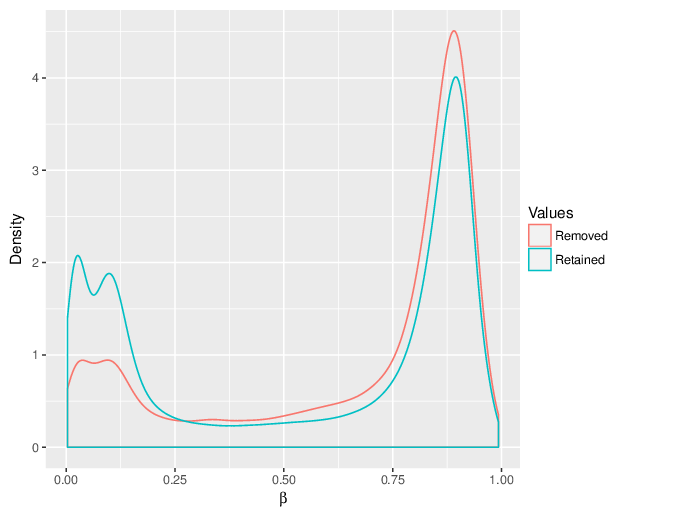

The figure below compares the distributions of the removed methylation β values and of the retained ones.

Plot type

Figure 4

Open PDF Figure 4

Comparison of removed and retained β values. The distribution of retained betas is estimated by randomly sampling 1000000 values.

Normalization

The data was normalized using method dasen from [1].

Effect of Correction

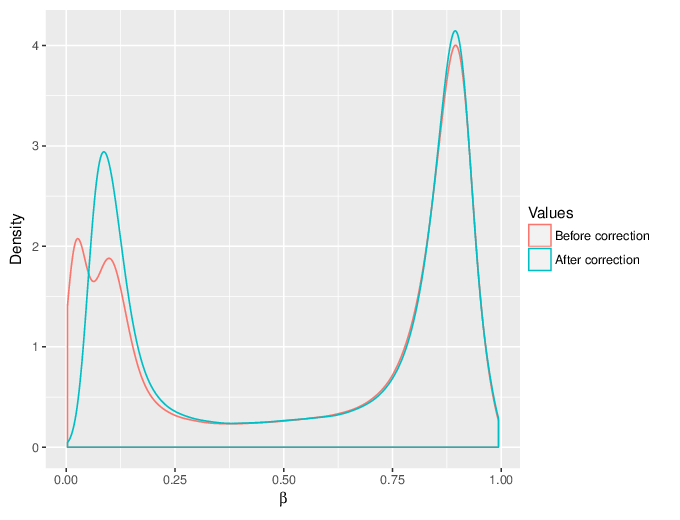

This section shows the influence of the applied normalization procedure on CpG methylation values. The following figure compares the distributions of the β values before and after performing normalization.

Plot type

Figure 5

Open PDF Figure 5

Comparison of β values before and after correction.Both distributions are estimated by randomly sampling 1000000 values in each group.

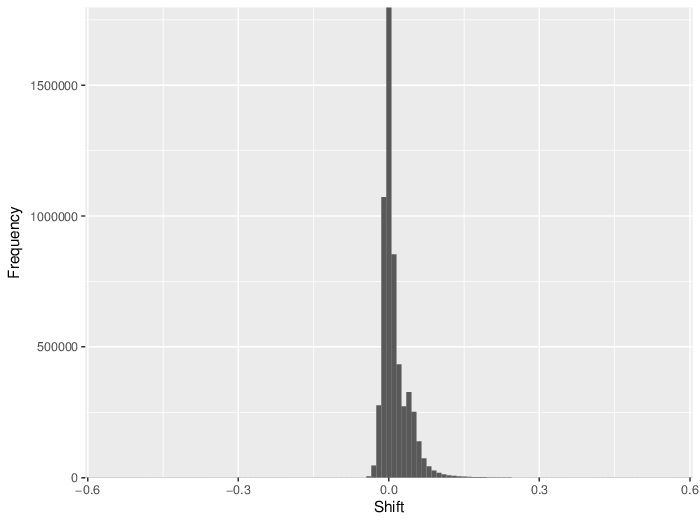

The next figure gives an idea of the magnitude of the correction by showing the distribution of shifts, i.e. degrees of modification of the raw methylation values.

Figure 6

Open PDF Figure 6

Histogram of observed magnitude of β value correction.

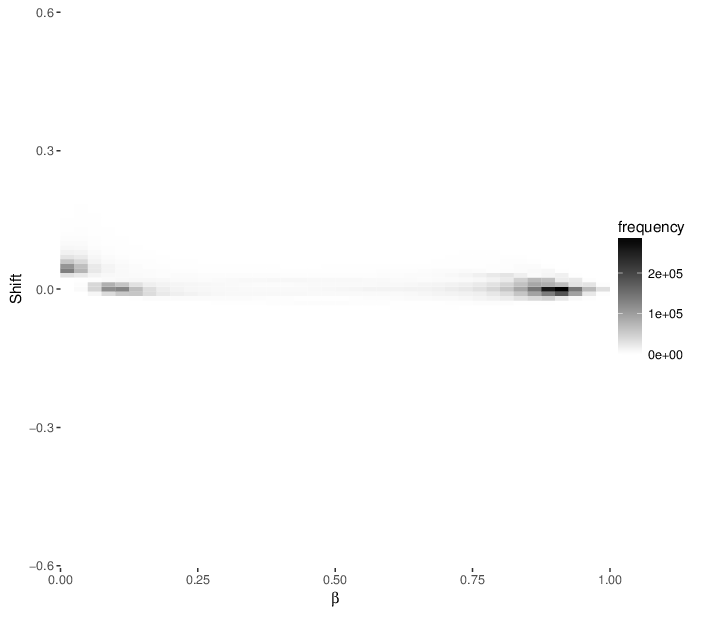

The figure below gives a more detailed view. This color-coded 2D histogram shows the uncorrected β values and their respective shifts after performing the normalization procedure.

Figure 7

Open PDF Figure 7

2D histogram showing the raw β values and the magnitude of the corrections.

Sample Mean Methylations

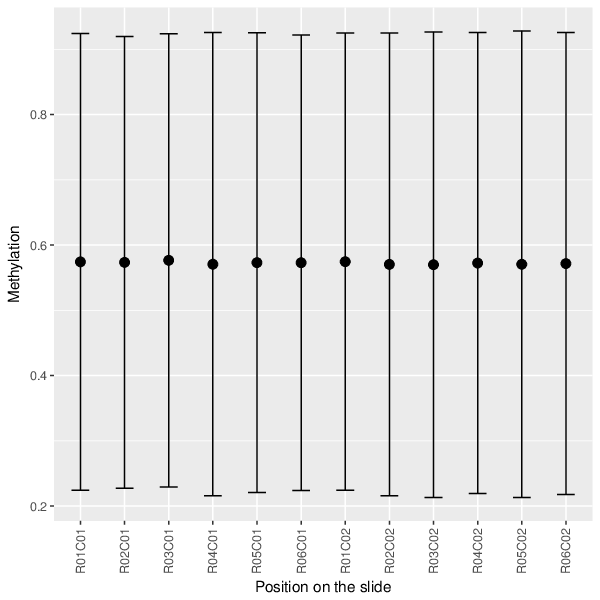

The following figure visualizes the average methylation per sample. Samples are grouped by slide.

Figure 8

Open PDF Figure 8

Point-and-whisker plot showing mean and standard deviation among all beta values in a sample.

Region Annotations

In addition to CpG sites, there are 4 sets of genomic regions to be covered in the analysis. The table below gives a summary of these annotations.

Annotation Description Regions in the Dataset
tiling

Genome tiling regions of length 5000

136213
genes

Ensembl genes, version Ensembl Genes 75

30859
promoters

Promoter regions of Ensembl genes, version Ensembl Genes 75

31035
cpgislands

CpG island track of the UCSC Genome browser

26610

Context-specific Probe Removal

The studied dataset contains in total 3140 probes of the specified contexts. All these (removed) probes are available in a dedicated table accompanying this report. The table below summarizes the number of removed probes per context.

Context Probes
CC 0
CAG 1290
CAH 194
CTG 7
CTH 1
Other 1648

Filtering Summary II

As a final outcome of the filtering procedures, 3140 probes and 0 samples were removed (12 samples and 471549 probes were retained). These statistics are presented in a dedicated table that accompanies this report and visualized in the figure below.

Figure 9

Open PDF Figure 9

Fractions of removed values in the dataset after applying filtering procedures.

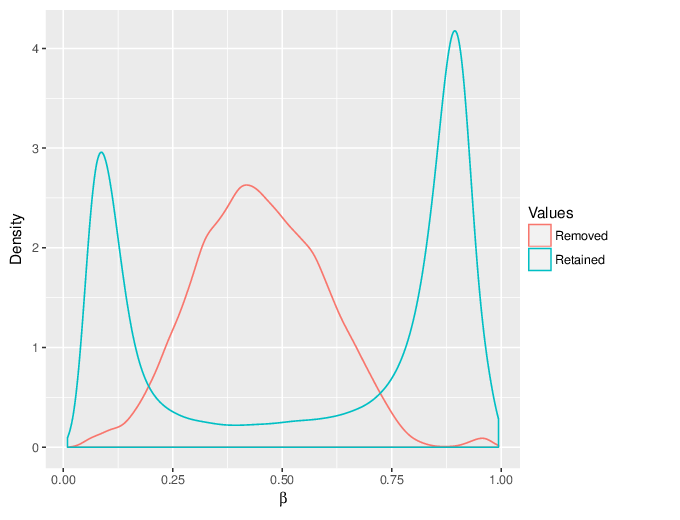

The figure below compares the distributions of the removed methylation β values and of the retained ones.

Plot type

Figure 10

Open PDF Figure 10

Comparison of removed and retained β values. The distribution of retained betas is estimated by randomly sampling 1000000 values.

References

  1. Pidsley, R., Wong, C., Volta, M., Lunnon, K., Mill, J., and Schalkwyk, L. (2013)A data-driven approach to preprocessing Illumina 450K methylation array data. BMC Genomics, 14(1), 293
