Exploratory Analysis

Sample Groups

Traits in the table of phenotypic information were automatically selected based on criteria for defining sample groups. The table below summarizes these traits.

Trait Number of groups
Cohort 2
Cell/Tissue 10
Gender 2
Sentrix ID 67
Sentrix Position 12
Cell Type 6
Age Group 2
Predicted Gender 2

Region Annotations

In addition to CpG sites, there is one set of genomic regions to be covered in the analysis. The table below gives a summary of these annotations.

Annotation Description Regions in the Dataset
promoters

Promoter regions of Ensembl genes, version Ensembl Genes 75

28443

Region length distributions

The plots below show region size distributions for the region types above.

Region type

Figure 1

Open PDF Figure 1

Distribution of region lengths

Number of sites per region

The plots below show the distributions of the number of sites per region type.

Region type

Figure 2

Open PDF Figure 2

Distribution of the number of sites per region

Region site distributions

The plots below show distributions of sites across the different region types.

Region type

Figure 3

Open PDF Figure 3

Distribution of sites across regions. relative coordinates of 0 and 1 corresponds to the start and end coordinates of that region respectively. Coordinates smaller than 0 and greater than 1 denote flanking regions normalized by region length.

Low-dimensional Representation

Dimension reduction is used to visually inspect the dataset for a strong signal in the methylation values that is related to samples' clinical or batch processing annotation. RnBeads implements two methods for dimension reduction - principal component analysis (PCA) and multidimensional scaling (MDS).

Multidimensional Scaling

The scatter plot below visualizes the samples transformed into a two-dimensional space using MDS.

Location type
Distance
Sample representation
Sample color

Figure 4

Open PDF Figure 4

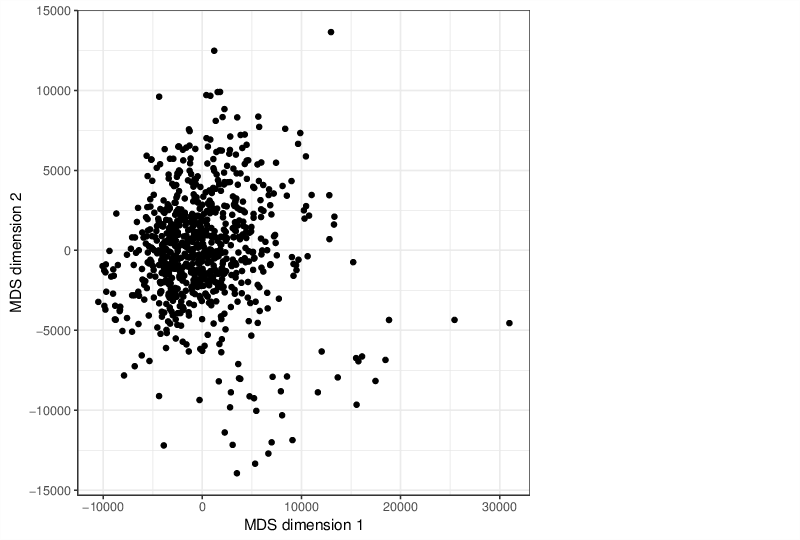

Scatter plot showing samples after performing Kruskal's non-metric mutidimensional scaling.

Principal Component Analysis

Similarly, the figure below shows the values of selected principal components in a scatter plot.

Location type
Principal components
Sample representation
Sample color

Figure 5

Open PDF Figure 5

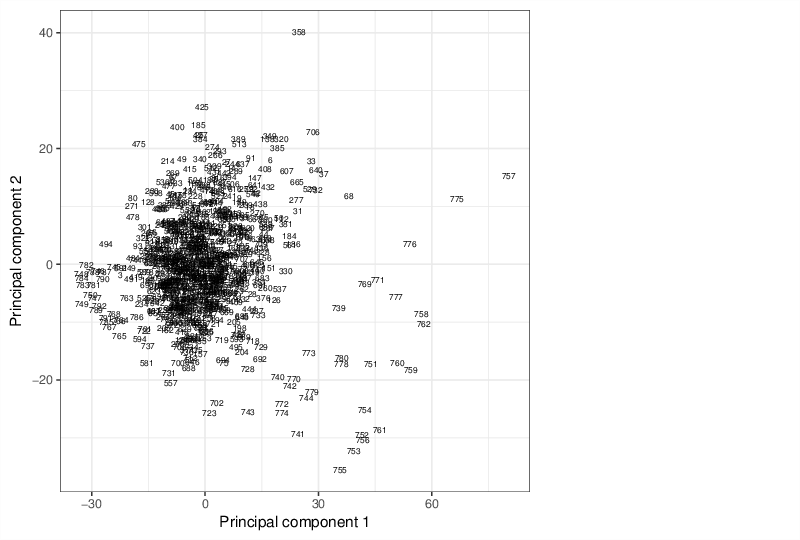

Scatter plot showing the samples' coordinates on principal components.

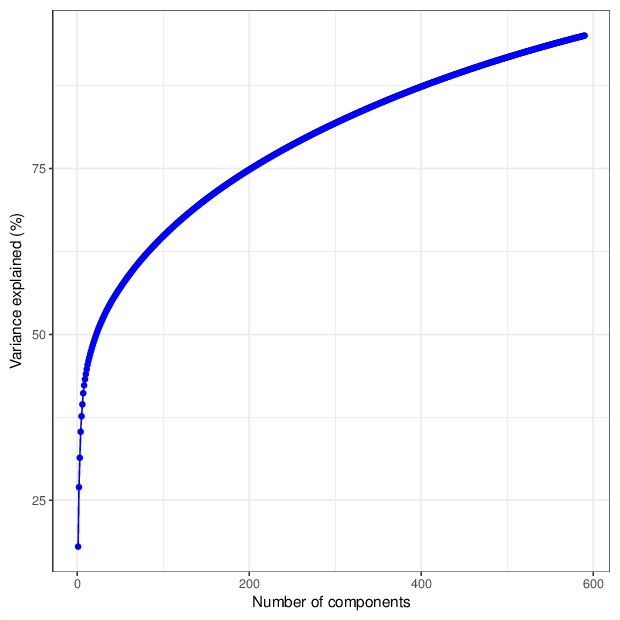

The figure below shows the cumulative distribution functions of variance explained by the principal components.

Location type

Figure 6

Open PDF Figure 6

Cumulative distribution function of percentange of variance explained.

The table below gives for each location type a number of principal components that explain at least 95 percent of the total variance. The full tables of variances explained by all components are available in comma-separated values files accompanying this report.

Location Type Number of Components Full Table File
sites 590 csv
promoters 495 csv

Batch Effects

In this section, different properties of the dataset are tested for significant associations. The properties can include sample coordinates in the principal component space, phenotype traits and intensities of control probes. The tests used to calculate a p-value given two properties depend on the essence of the data:

Note that the p-values presented in this report are not corrected for multiple testing.

Associations between Principal Components and Traits

The computed sample coordinates in the principal component space were tested for association with the available traits. Below is a list of the traits and the tests performed.

Trait Test
Cohort Wilcoxon
Cell/Tissue Kruskal-Wallis
Age Correlation
Gender Wilcoxon
Sentrix ID Kruskal-Wallis
Sentrix Position Kruskal-Wallis
Cell Type Kruskal-Wallis
Age Group Wilcoxon
Predicted Male Probability Correlation
Predicted Gender Wilcoxon
Genome-wide methylation Correlation
predicted_ages Correlation
age_increase Correlation
Immune Cell Content (LUMP) Correlation

The next figure shows the computed correlations between the first 8 principal components and the sample traits.

Region type

Figure 7

Open PDF Figure 7

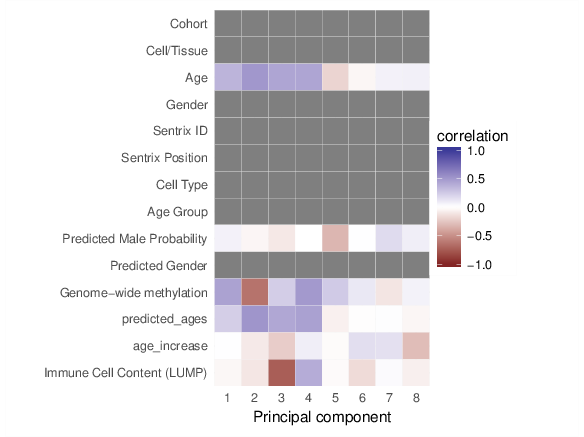

Heatmap presenting a table of correlations. Grey cells, if present, denote missing values.

The values presented in the figure above are avaialable in CSV (comma-separated value) files accompanying this report.

Location type Table file
sites csv
promoters csv

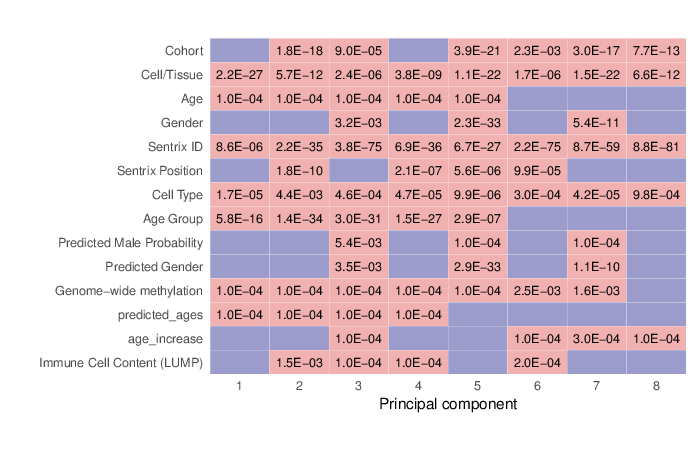

The heatmap below summarizes the results of permutation tests performed for associations. Significant p-values (values less than 0.01) are displayed in pink background.

Region type

Figure 8

Open PDF Figure 8

Heatmap presenting a table of p-values. Significant p-values (less than 0.01) are printed in pink boxes. Non-significant values are represented by blue boxes. Bright grey cells, if present, denote missing values.

The full tables of p-values for each location type are available in CSV (comma-separated value) files below.

Location Type File Name
sites csv
promoters csv

Associations between Traits

This section summarizes the associations between pairs of traits.

The figure below visualizes the tests that were performed on trait pairs based on the description provided above. In some cases, pairs of traits could not be tested for associations. These scenarios are marked by grey shapes, and the underlying reason is given in the figure legend. In addition, the calculated p-values for associations between traits are shown. Significant p-values (values less than 0.01) are displayed in pink background. The full table of p-values is available in a dedicated file that accompanies this report.

Heatmap of

Figure 9

Open PDF Figure 9

(1) Table of performed tests on pairs of traits. Test names (Correlation + permutation test, Fisher's exact test, Wilcoxon rank sum test and/or Kruskal-Wallis one-way analysis of variance) are color-coded according to the legend given above.
(2) Table of resulting p-values from the performed tests on pairs of traits. Significant p-values (less than 0.01) are printed in pink boxes Non-significant values are represented by blue boxes. White cells, if present, denote missing values.

In some cases, a correlation was computed between a pair of traits. As described earlier in this report, these correlation values are used as the basis for a permutation-based test. The table of computed correlations is available as a comma-separated file accompanying this report.

Quality-associated Batch Effects

This section examines the methylation values of the dataset for quality-associated batch effects.

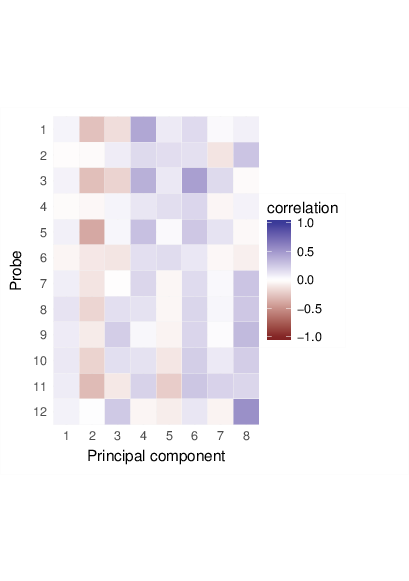

The heatmaps below visualize the Pearson correlation coefficients between the principal components and the signal levels of selected quality control probes.

Location type
Channel
Probe group

Figure 10

Open PDF Figure 10

Heatmap presenting a table of correlations. Grey cells, if present, denote missing values.

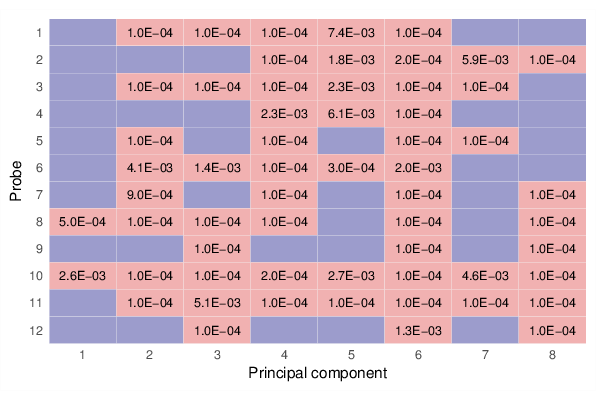

In a complete analogy to the heatmaps above, the figure below visualizes the p-values calculated using permutation tests.

Location type
Channel
Probe group

Figure 11

Open PDF Figure 11

Heatmap presenting a table of p-values. Significant p-values (less than 0.01) are printed in pink boxes. Non-significant values are represented by blue boxes. Bright grey cells, if present, denote missing values.

All computed p-values for associations are available as comma-separated files that accompany this report. The links to the dedicated files are provided in the table below.

Location type

Control probe type \ Target - Channel Green Red
bisulfite conversion I csv csv
bisulfite conversion II csv csv
extension csv csv
hybridization csv csv
non-polymorphic csv csv
specificity I csv csv
specificity II csv csv
staining csv csv
target removal csv csv

Methylation Value Distributions

Methylation value distributions were assessed based on selected sample groups. This was done on probe and region levels. This section contains the generated density plots.

Methylation Value Densities of Sample Groups

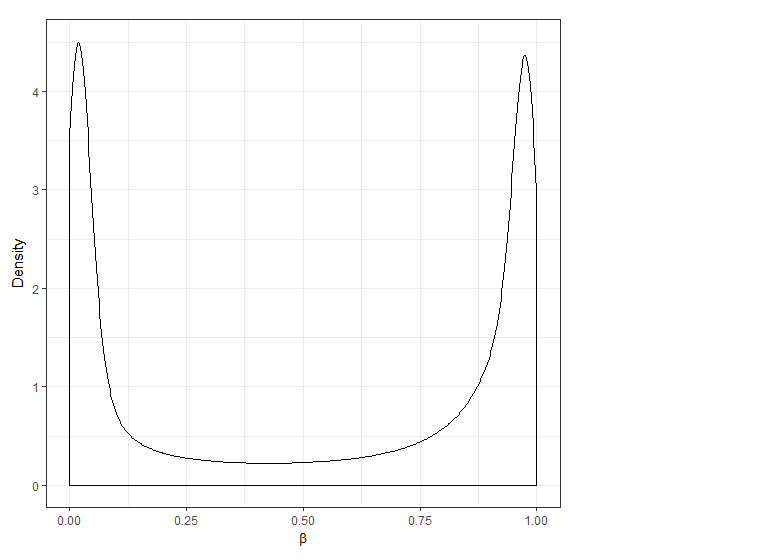

The plots below compare the distributions of methylation values in different sample groups, as defined by the traits listed above.

Sample trait
Methylation of

Figure 12

Open PDF Figure 12

Beta value density estimation according to sample grouping.

Methylation Value Densities of Probe Categories

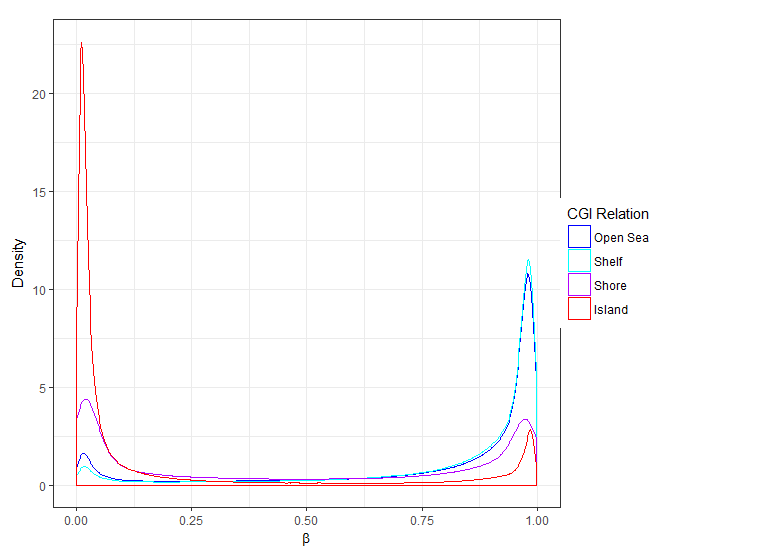

In a similar fashion, the plot below compares the distributions of beta values in different probe types.

Sample group
Probe category

Figure 13

Open PDF Figure 13

Methylation value density estimation according to sample grouping and probe category.

Inter-sample Variability

The variability of the methylation values is measured in two aspects: (1) intra-sample variance, that is, differences of methylation between genomic locations/regions within the same sample, and (2) inter-sample variance, i.e. variability in the methylation degree at a specific locus/region across a group of samples.

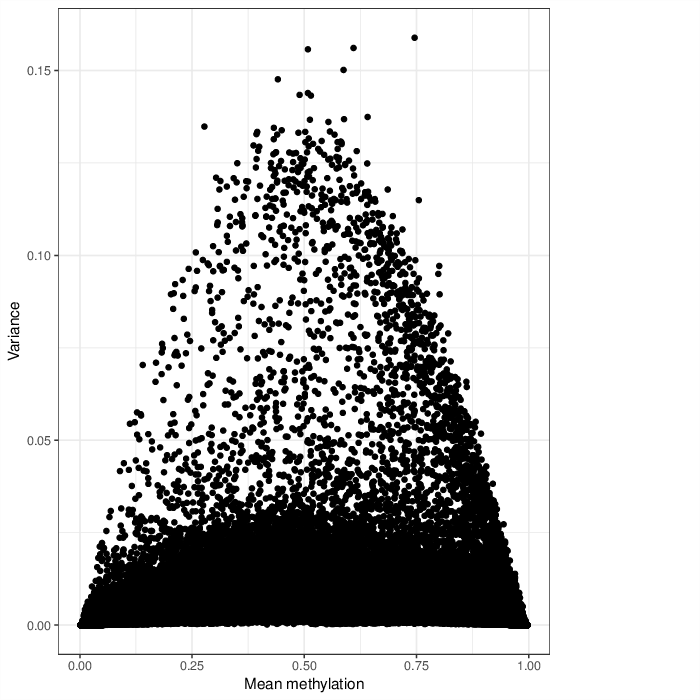

The following figure shows the relationship between average methylation and methylation variability of a probe.

Sample group
Point color based on

Figure 14

Figure 14

Scatter plot showing the correlation betweeen probe mean methylation and the variance across a group of samples. Every point corresponds to one probe.

In a complete analogy to the plots above, the figure below shows the relationship between average methylation and methylation variability of a genomic region.

Regions
Sample group
Point color based on

Figure 15

Figure 15

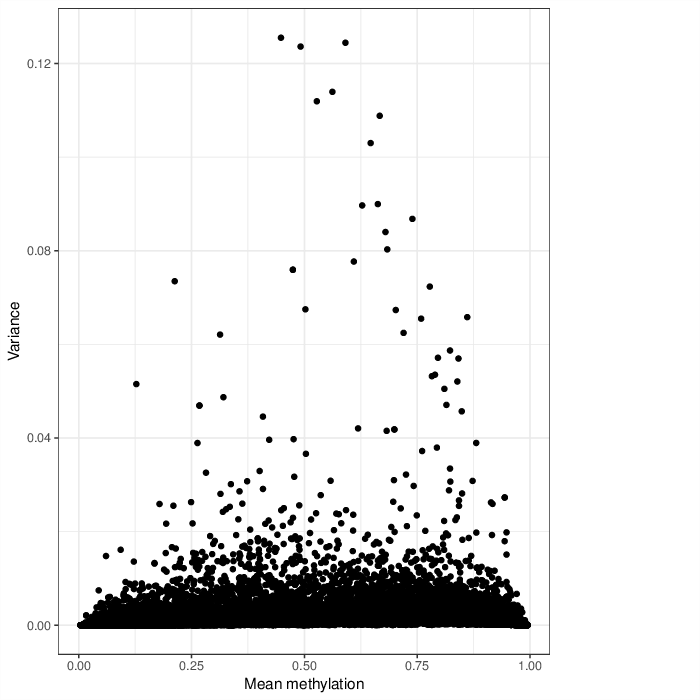

Scatter plot showing the correlation betweeen region mean methylation and the variance across a group of samples. Every point corresponds to one region.

Clustering

The figure below shows clustering of samples using several algorithms and distance metrics.

Site/region level
Dissimilarity metric
Agglomeration strategy (linkage)
Sample color based on

Figure 16

Figure 16

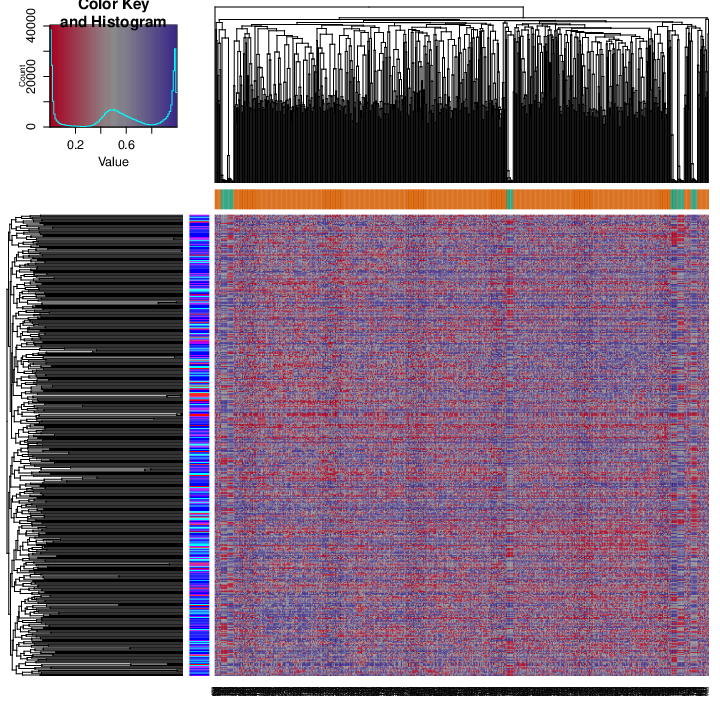

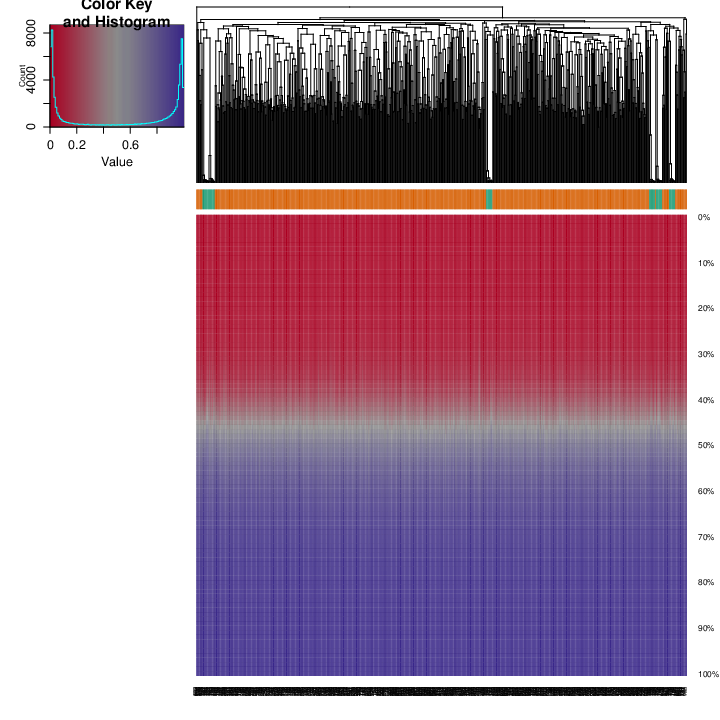

Hierarchical clustering of samples based on 500 most variable loci. The heatmap displays methylation percentiles per sample. The legend for sample coloring can be found in the figure below.

Site/region level
Dissimilarity metric
Agglomeration strategy (linkage)
Sample color based on
Site/region color based on
Visualize

Figure 17

Figure 17

Hierarchical clustering of samples based on 500 most variable loci. The heatmap displays only selected sites/regions with the highest variance across all samples. The legend for locus and sample coloring can be found in the figure below.

Site/region level
Sample color based on
Site/region color based on

Figure 18

Open PDF Figure 18

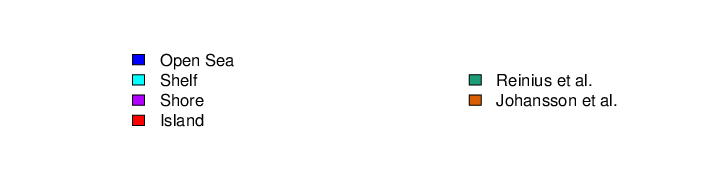

Probe and sample colors used in the heatmaps in the previous figures.

Identified Clusters

Using the average silhouette value as a measure of cluster assignment [1], it is possible to infer the number of clusters produced by each of the studied methods. The figure below shows the corresponding mean silhouette value for every observed separation into clusters.

Site/region level
Dissimilarity metric

Figure 19

Open PDF Figure 19

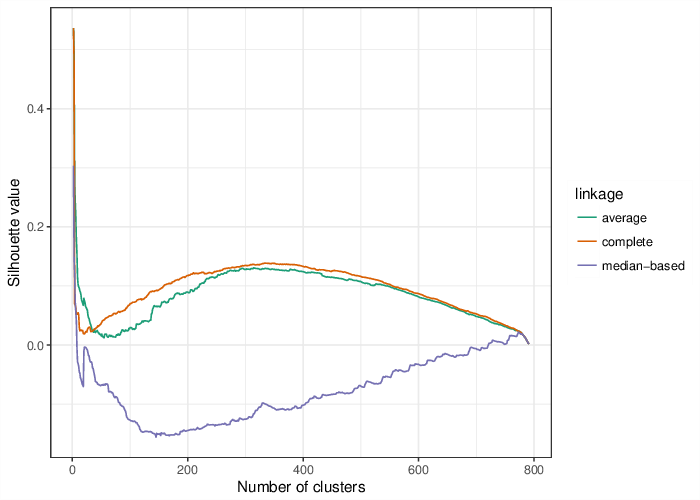

Line plot visualizing mean silhouette values of the clustering algorithm outcomes for each applicable value of K (number of clusters).

The table below summarizes the number of clusters identified by the algorithms.

Site/region level

Metric Algorithm Clusters
correlation-based hierarchical (average linkage) 2
correlation-based hierarchical (complete linkage) 2
correlation-based hierarchical (median linkage) 2
Manhattan distance hierarchical (average linkage) 2
Manhattan distance hierarchical (complete linkage) 2
Manhattan distance hierarchical (median linkage) 2
Euclidean distance hierarchical (average linkage) 2
Euclidean distance hierarchical (complete linkage) 2
Euclidean distance hierarchical (median linkage) 2

Clusters and Traits

The figure below shows associations between clusterings and the examined traits. Associations are quantified using the adjusted Rand index [2]. Rand indices near 1 indicate high agreement while values close to -1 indicate seperation. The full table of all computed indices is stored in the following comma separated files:

Site/region level
Dissimilarity metric

Figure 20

Open PDF Figure 20

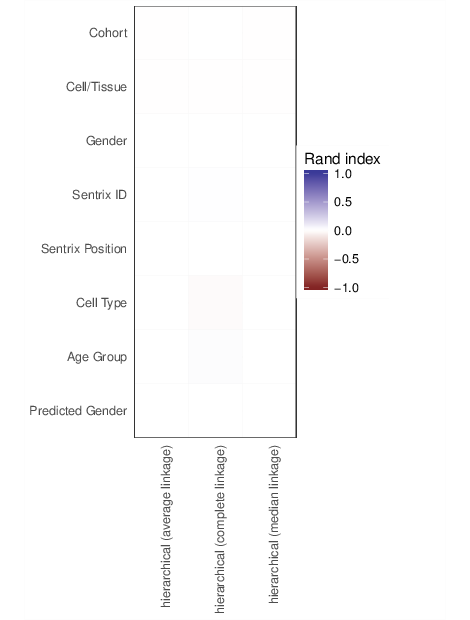

Heatmap visualizing Rand indices computed between sample traits (rows) and clustering algorithm outcomes (columns).

Regional Methylation Profiles

Methylation profiles were computed for the specified region types. Composite plots are shown

Region type
Sample trait

Figure 21

Open PDF Figure 21

Regional methylation profiles (composite plots) according to sample groups. For each region in the corresponding region type, relative coordinates of 0 and 1 corresponds to the start and end coordinates of that region respectively. Coordinates smaller than 0 and greater than 1 denote flanking regions normalized by region length. Scatterplot smoothers for each sample and sample group were fit. Horizontal lines indicate region boundaries. For smoothing, generalized additive models with cubic spine smoothing were used. Deviation bands indicate 95% confidence intervals

References

  1. Rousseeuw, P. J. (1987) Silhouettes: A graphical aid to the interpretation and validation of cluster analysis. Journal of Computational and Applied Mathematics, 20, 53-65
  2. Hubert, L. and Arabie, P. (1985) Comparing partitions. Journal of Classification, 2(1), 193-218
