Preprocessing

The table below lists the options of the executed module.

SNP-based filtering was not performed because the site annotation does not include SNP information.

434 sites was detected as a high coverage outlier in at least one sample and removed at this step. An outlier site is defined as one whose coverage exceeds 50 times the 0.95-quantile of coverage values in its sample. The list of removed sites is available in a dedicated table accompanying this report.

A total of 3143364 sites with coverage less than 5 were masked by NA in the methylation table The numbers of masked sites per sample are available in a dedicated table accompanying this report.

579135 sites were removed because they contain more than 7 missing values in the methylation table. This threshold corresponds to 50% of all samples. The total number of missing values in the methylation table before this filtering step was 6338692. A dedicated table of all removed sites is attached to this report.

The figure below shows the distribution of missing values per site.

Sites to include

all sites with missing values

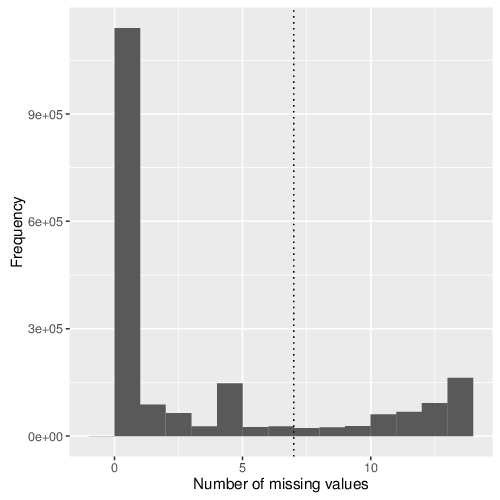

Figure 1

Histogram of number of sites that contain missing values. The vertical line, if visible, denotes the applied threshold.

As a final outcome of the filtering procedures, 579569 sites and 0 samples were removed. These statistics are presented in a dedicated table that accompanies this report and visualized in the figure below.

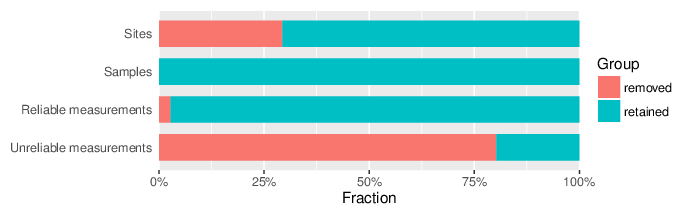

Figure 2

Fractions of removed values in the dataset after applying filtering procedures.

The figure below compares the distributions of the removed methylation β values and of the retained ones.

Plot type

density estimation histograms quantile-quantile plot

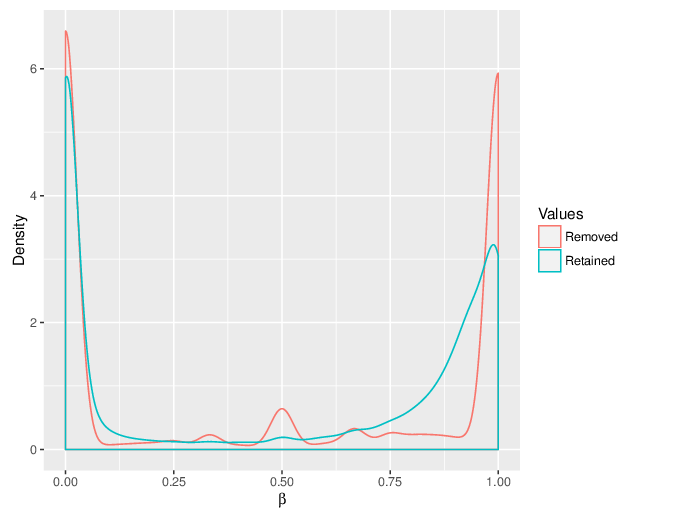

Figure 3

Comparison of removed and retained β values.Both distributions are estimated by randomly sampling 1000000 values in each group.
